Have you ever wondered about applying different Spreadsheet Formats to reports which may be send to different people and so the styling may be different for each recipient? The Boss may get a Formal report where the Art department may get a Funky version of the same data?
No, Neither had I until recently when somebody asked me for just that:

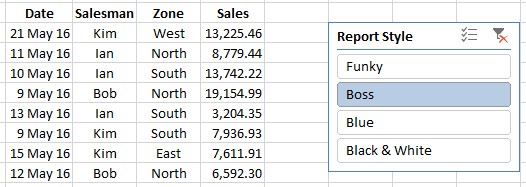

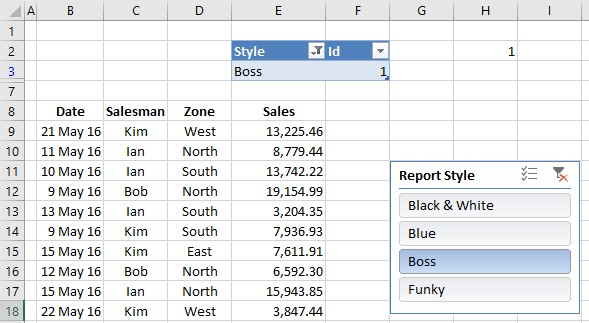

Boss Style
Black & White Style
Funky Style
Blue Style
Of course using Conditional Formats you can highlight cells based on criteria, so why not extend that to the Whole Report Styling?
This tutorial will detail just that.
Lets get started
Download the Sample File (Excel 2013 & 2016 + only): Download Sample File

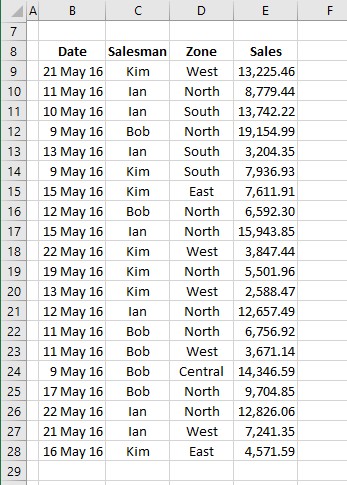

Firstly Identify your Report Area
In this case it is B8:E28
Note: The area above includes the header row, Row 8, but you can actually apply different CF’s to hat independently of the data area if you require

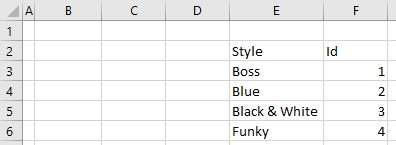

Make a list of Style Names
I have used four namely: Boss, Blue, Black & White and Funky.
Add an Id next to each from 1 to x in this case 4 as there are 4 entries

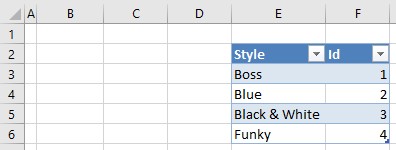

Convert the Table to a Table by selecting the area E2:F6
Goto Insert, Table
Add a Style Link cell
In a spare cell H2: add a formula like: =SUBTOTAL(4,Style[Id])
This will extract the Maximum value from the Table when the non-selected rows are hidden.
I have also Named the cell Style_Link
Add a Slicer
Select any cell in the Style Table and goto the Insert, Slicer menu

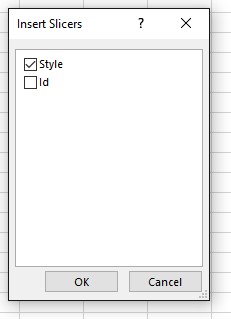

An Insert Slicers dialog pops up, Select Style

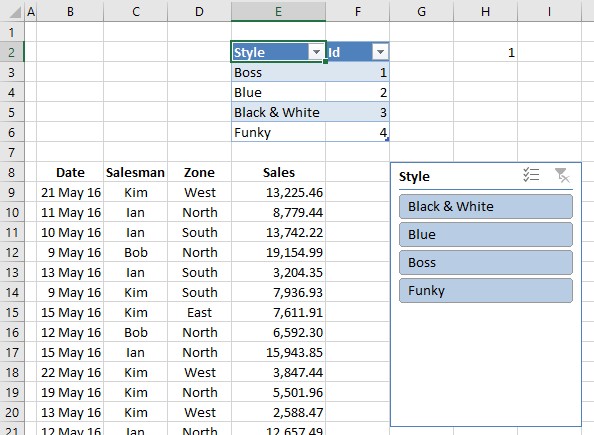

You will now have a Slicer linked to the Styles table
You can format the slicer as appropriate, Resize and Rename it if required
Apply Conditional Formats to the Report
Now select the report area and apply four Conditional Formats which will be styles according to the Useage
You normally only apply 3 styles as the default is already a style
Select B8:E28
Goto the Conditional Format, New Rule, Use a Formula menu
Apply the formula and format to suit your needs
Boss
This is my Default style when Style_Link = 1
Hence I don’t need to apply a specific style

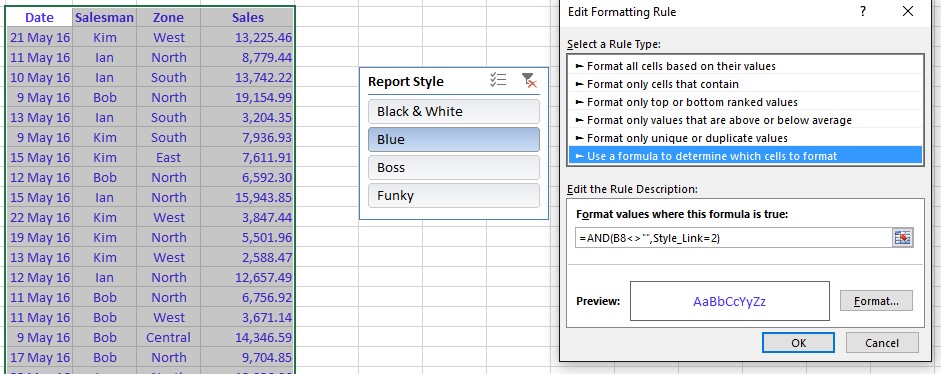

Blue
This is my Conditional Format style when Style_Link = 2
Note: the formula used is =AND(B8<>””, Style_Link=2)
So the Conditional Format will only apply this to cells in the area with a value in them and when the Style_Link cell = 2

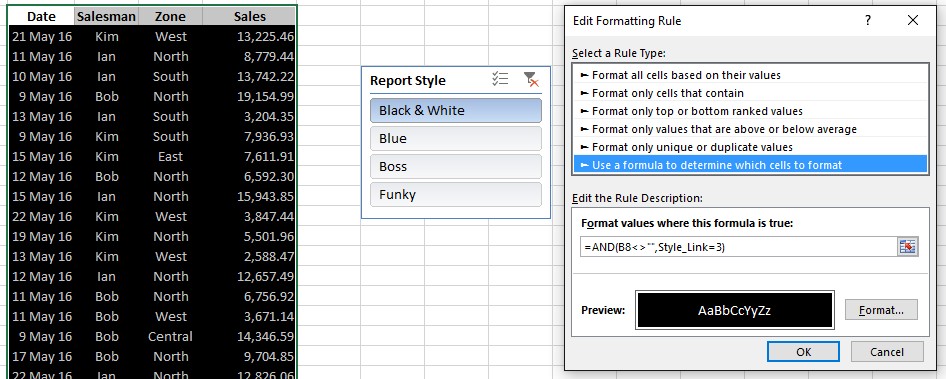

Black & White
This is my Conditional Format style when Style_Link = 3
Note: the formula used is =AND(B8<>””, Style_Link=3)
So the Conditional Format will only apply this to cells in the area with a value in them and when the Style_Link cell = 2
Funky
This is my Conditional Format style when Style_Link = 4
Note: the formula used is =AND(B8<>””, Style_Link=4, ISODD(Row))
So the Conditional Format will only apply this to cells in the area with a value in them and when the Style_Link cell = 4 and the Row Number is Odd
Obviously we need to apply a second Conditional Format for when the even numbered Rows
It will use the Conditional Format formula: =AND(B8<>””, Style_Link=4, ISEVEN(Row))

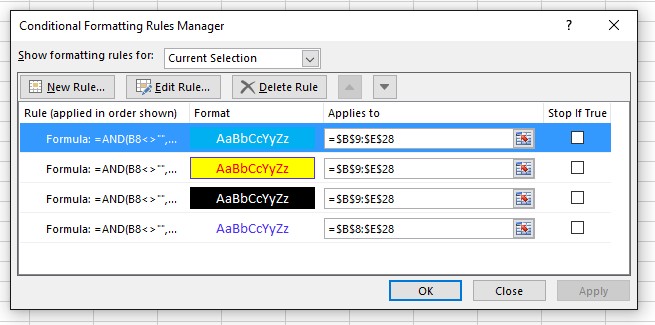

You should end up with four Conditional Formats listed as:
Conclusion
You now have a tool which allows you to dynamically change the styling of your worksheet reports.
You can add extra formatting by using the Style_Link cell to say change the Decimal Places of the numbers in Column E of the report
eg: Assuming my Sales Data is in Column AA, which it is.
In E9: =TEXT(AA9,CHOOSE(Style_Link,”$A 0,000.00″,”A$ 0,000″,”AUD 0,000″,”F$ 0,000″)))
Copy down
This will apply 2 decimals to Column E when the Boss Style (1) is chosen and zero decimals for everybody else
It will also apply different currency leaders for the different styles
Style 1: Boss $A
Style 2: Black & White A$
Style 3: Boss AUD
Style 4: Funky $F
As mentioned in one of the notes above, you can apply Conditional Formatting independently to the Headers, Footers or Summary areas of the Report, your imagination is the limit.
I’m sure you can think of other modifications to the layout that can be implemented using these techniques
